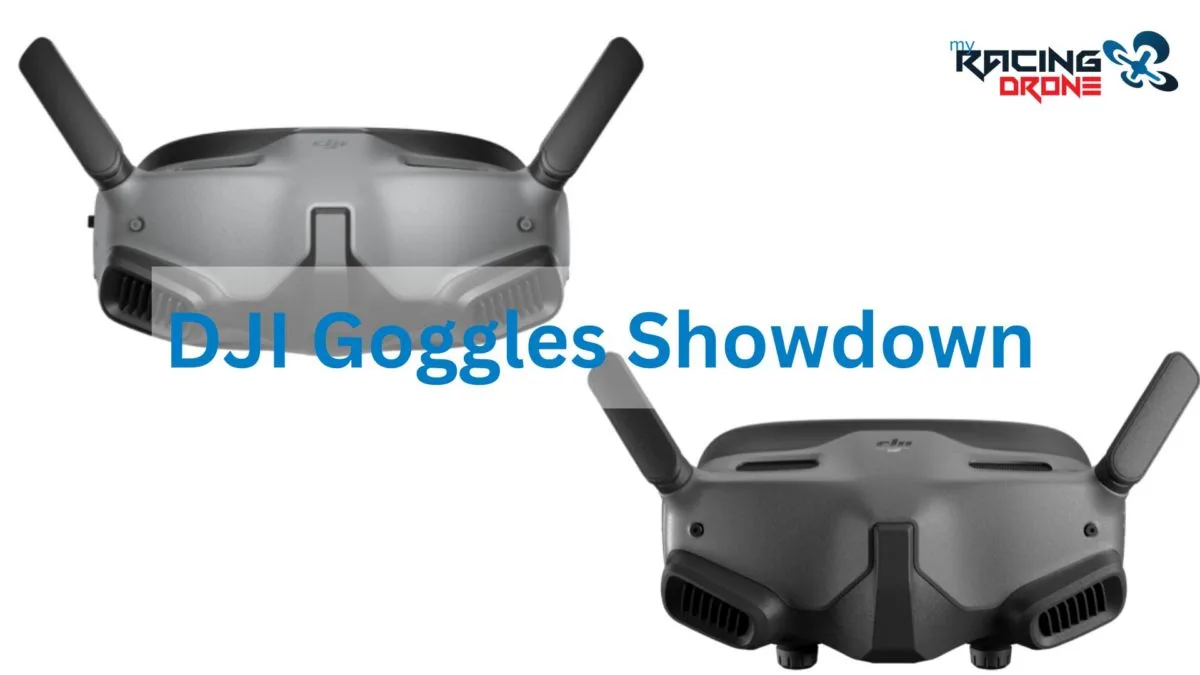

DJI Goggles 2 and Goggles Integra are the latest FPV goggles from DJI. If you are interested in the DJI digital FPV system, you might wonder which goggles you should buy. In this article, we’ll outline the features of both goggles to help you make an informed decision.

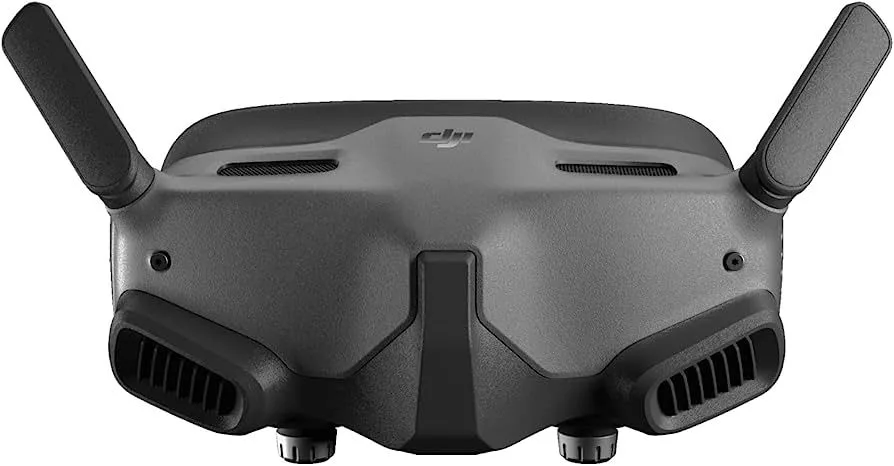

DJI Goggles 2
The DJI Goggles 2 is a high-end digital FPV system that offers a number of improvements over the previous generation of DJI goggles.
The DJI Goggles 2 are made from lightweight materials and have a compact design, making them comfortable to wear for long periods of time.
It supports a video resolution of 1440p at 60fps, with a latency of just 28 milliseconds. This provides a smooth and immersive FPV experience.
The DJI Goggles 2 have a built-in DVR that can record videos in 1080p at 60fps. The videos are stabilized using RockSteady technology, which ensures that they are smooth and free of vibrations.
The two external antennas on the DJI Goggles 2 are removable, which allows you to upgrade them with aftermarket antennas for improved performance. There are 2 more internal antennas to further improve the signal range.
The DJI Goggles 2 rely on a trackpad for navigation and menu control, instead of buttons. This makes them more durable than goggles with physical buttons, but it can take some time to get used to.
Here are the pros and cons of DJI Goggles 2.
Pros:
- Sleek and lightweight design
- High video resolution and low latency
- Removable antennas
- Wide IPD and focus adjustment range
- Long battery life
- USB-C video output
Cons:
- Trackpad navigation can take some time to get used to
- No HDMI input
- Not compatible with analog FPV systems
Overall, the DJI Goggles 2 is a great option for those who are looking for a high-end digital FPV system. They offer a number of improvements over the previous generation of DJI goggles. However, they are not compatible with analog FPV systems and they do not have HDMI input.

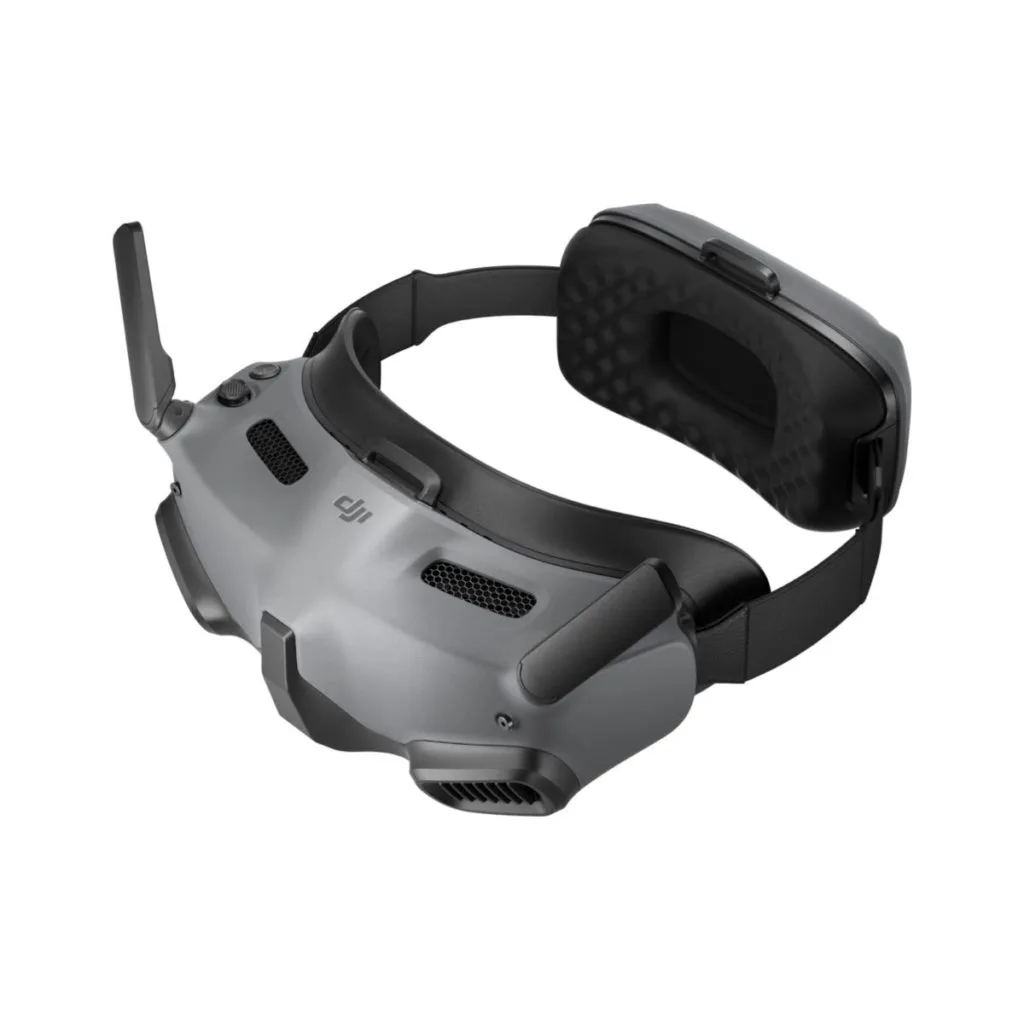

DJI Goggles Integra
The DJI Goggles Integra is a budget-friendly version of the DJI Goggles 2. It has premium features like OLED displays and integrated battery, but it lacks some of the features of the DJI Goggles 2, such as adjustable diopters and wireless streaming.
Here are the pros and cons of Goggles Integra.
Pros:
- Affordable
- Lightweight
- Comfortable
- Integrated battery module
- 1080p micro-OLED screens
- 100Hz refresh rate
- Built-in GPS
Cons:
- Smaller FOV
- Lack of adjustable diopters
- No wireless streaming
- Non-removable antennas
The lightweight design of Integra ensures a comfortable and immersive FPV experience. On top of that, the battery is integrated into the head strap for a more streamlined design. No more putting the batteries in pocket.
The DJI Goggles Integra has non-removable antennas design. This is a major drawback for pilots who want to customize their antennas for better reception.
Another drawback of Goggles Integra is the lack of adjustable diopters. The adjustable diopter feature is important for users who need to adjust the focus of the FPV goggles to see the image clearly. Without this feature, pilots with myopia or hyperopia will need to use diopter inserts or contact lenses, which is rather inconvenient.
The DJI Goggles Integra is compatible with all the DJI components including the DJI Avata & FPV drones, Air Units including O3 and Vistas, and remote controllers including DJI Motion Controller, RC Motion 2, and FPV Remote Controller 2.
Overall, the DJI Goggles Integra is a good option for those looking for a budget-friendly, DJI digital FPV experience. It offers a few features at a lower price point compared to the Goggles 2, but it does lack some of the features of the Goggles 2. Ultimately, the best choice for you will depend on your personal preferences and requirements.
Specs Comparisons
Both DJI Goggles 2 and Integra have similar specifications. I’ve put them side by side in the table below in case you want to compare them.
| Specs | DJI Goggles 2 | DJI Goggles Integra |
|---|---|---|
| Resolution | 1920×1080 | 1920×1080 |
| Latency | 1080p/100fps @ 30ms | 1080p/100fps @ 30ms |
| Field of view | 54° | 44° |
| IPD adjustment range | 56-72mm | 56-72mm |
| Focus adjustment range | +2 to -8 | NA |
| Battery compartment | NA | Integrated on headstrap |
| Battery life | ~2 hours | ~2 hours |
| Antenna | Removable | Non-removable |
| Wireless streaming | Yes | No |
| Bluetooth | Yes | No |
| Weight | ~290 g without battery | ~410 g with battery |
Which One to Choose?
By now, you should have realized that both Goggles 2 and Goggles Integra are very similar, with Goggles 2 having slightly more features which could be useful to some pilots.
If you have the budget and would like to enjoy the full features of the new DJI goggles, the Googles 2 is definitely the best option. However, if you have a tight budget or do not need the customizable antennas or adjusted diopters and wireless streaming, you should get Goggles Integra!
Whichever you choose, you are locking yourself within the DJI ecosystem, which is expensive. Make sure you explore all other digital FPV systems before making your decision.
